STIHL

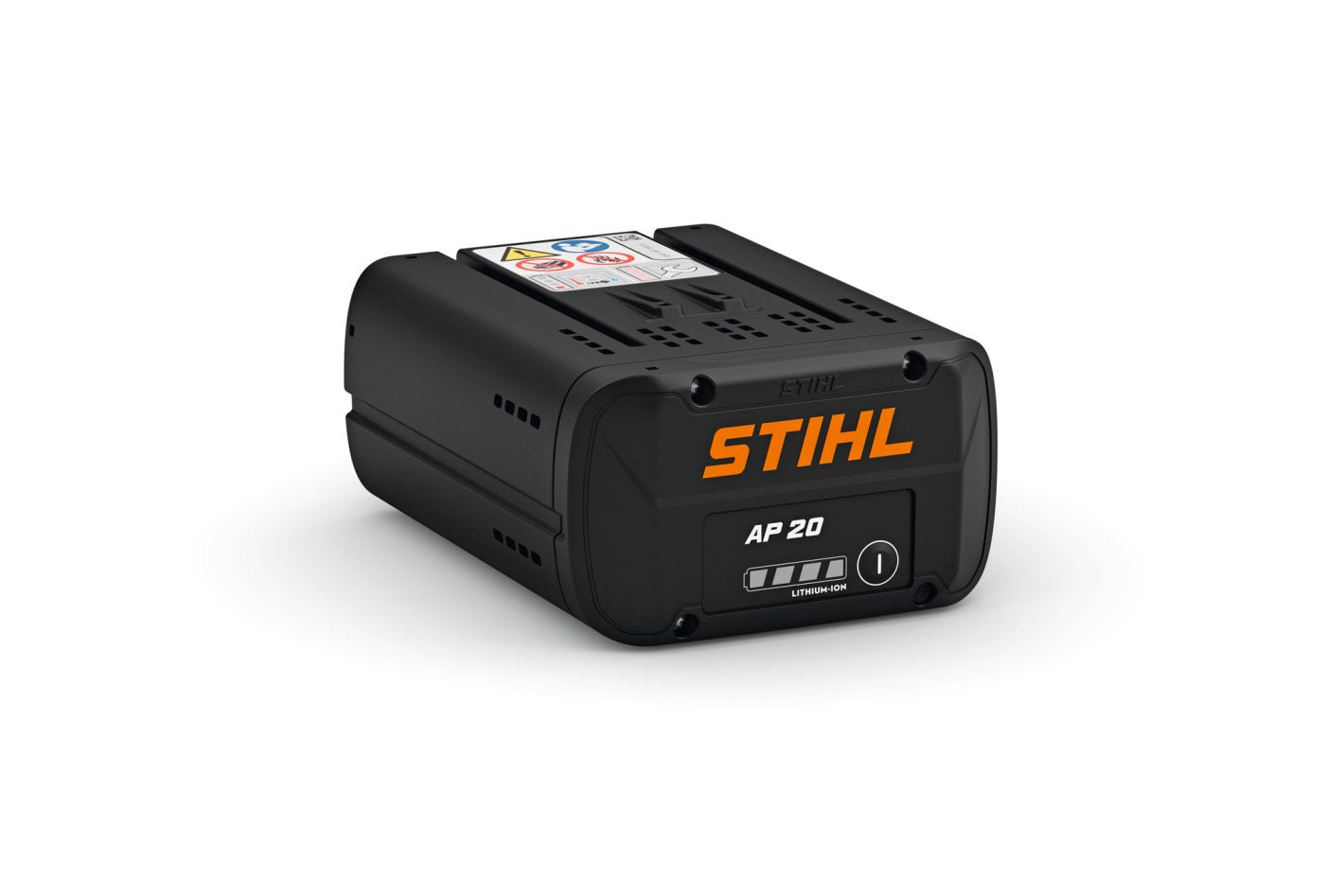

Stihl AP 20 Battery
Couldn't load pickup availability
SKU: 48504006536
AP 20 Battery: Lithium-Ion 144 Wh battery
36 V, 4.0 Ah Lithium-Ion battery. The AP 20 is an entry-level battery that powers some tools within the STIHL AP System.
With an energy capacity of 144 Wh, the battery has an integrated LED charge indicator, clearly displaying as and when the battery needs charging.
Ideal for lighter gardening and landscaping tasks, the AP 20 is suitable for domestic, semi-professional and professional users. Durable and IPX4 rated for all weather conditions, the AP 20 delivers long working times whilst offering a cost-effective way of powering entry level AP System tools.
This battery has a cold start feature, which protects the cells by warming them up in a controlled way before delivering full power and allows them to work down to -20° Celsius.
AP System batteries feature intelligent battery management system - this clever technology gives a constant level of power whether the battery is 100% charged or 1% charged.
Compatible with the AL 101, AL 301, AL 301-4 and AL 501 charger unit. For a full list of STIHL battery-powered tool working times, click here.
The AP 20 will give you full power / reduced power when used with the following tools:
| Full power | ||||
|---|---|---|---|---|
| FSA 86 | FSA 90 | HLA 66 | HLA 86 | HSA 66 |
| HSA 86 | HSA 100 | HSA 130 | HSA 140 | HSA 150 |
| KGA 770 | SEA 100 | SHA 140 | SGA 85 | - |
| Reduced power | ||||
|---|---|---|---|---|
| BGA 86 | BGA 100 | BGA 160 | FSA 110 | FSA 120 |
| FSA 130 | FSA 135 | HLA 135 | HTA 66 | HTA 86 |
| HTA 135 | HTA 150 | HTA 160 | KMA 120 | KMA 135 |
| MSA 161 T | MSA 190 T | MSA 220 T | RMA 2 RV | RMA 443 |
| RMA 448 | RMA 453 | - | - | - |
Technical details
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Battery weight | 1.3 kg |
| Rated capacity as per IEC 61960 | 3.90 A·h |
| Rated cell capacity (as per manufacturer data) | 2 A·h |
| Number of LEDs | 4 |
| Width | 116 mm |
| Length | 70 mm |
