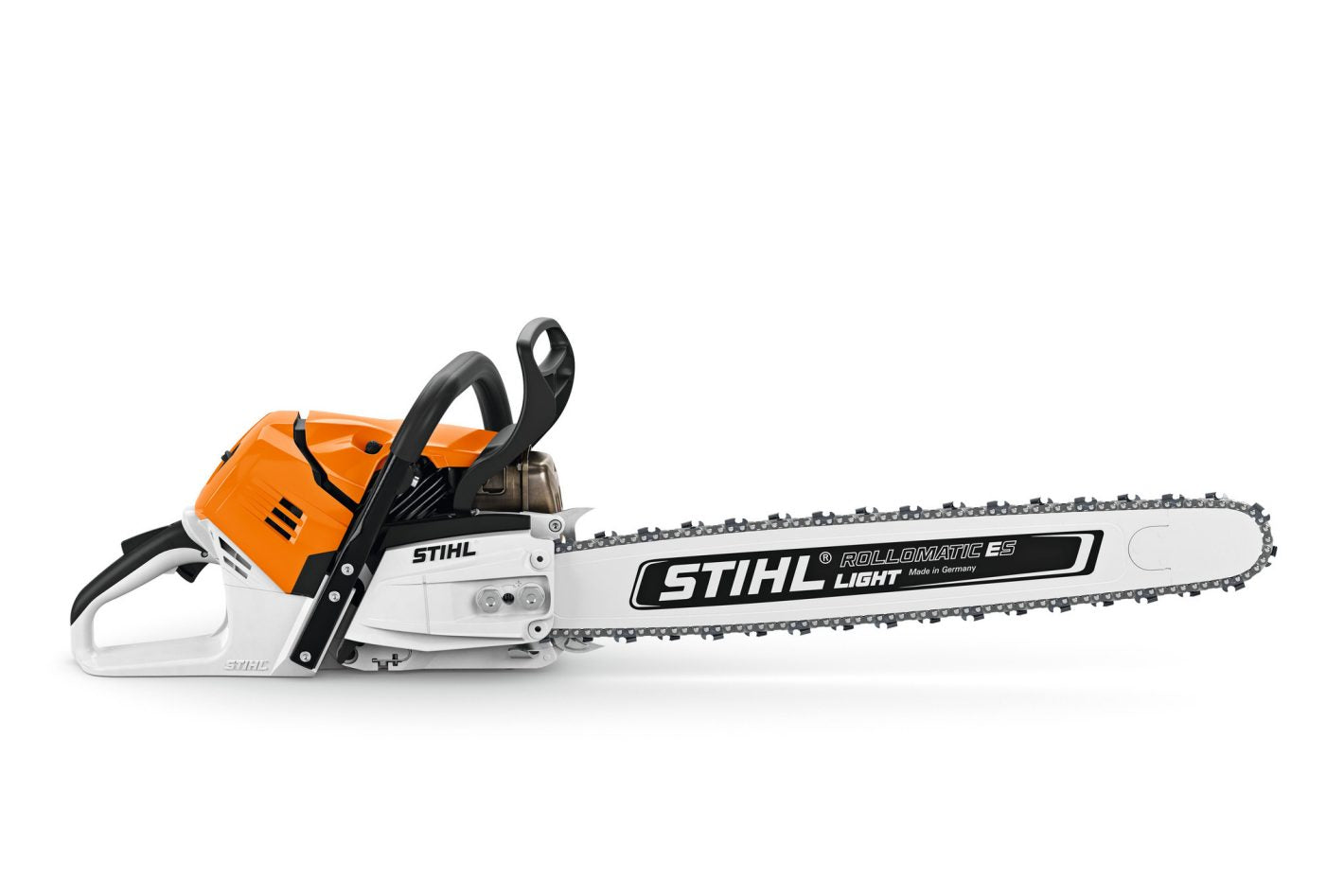

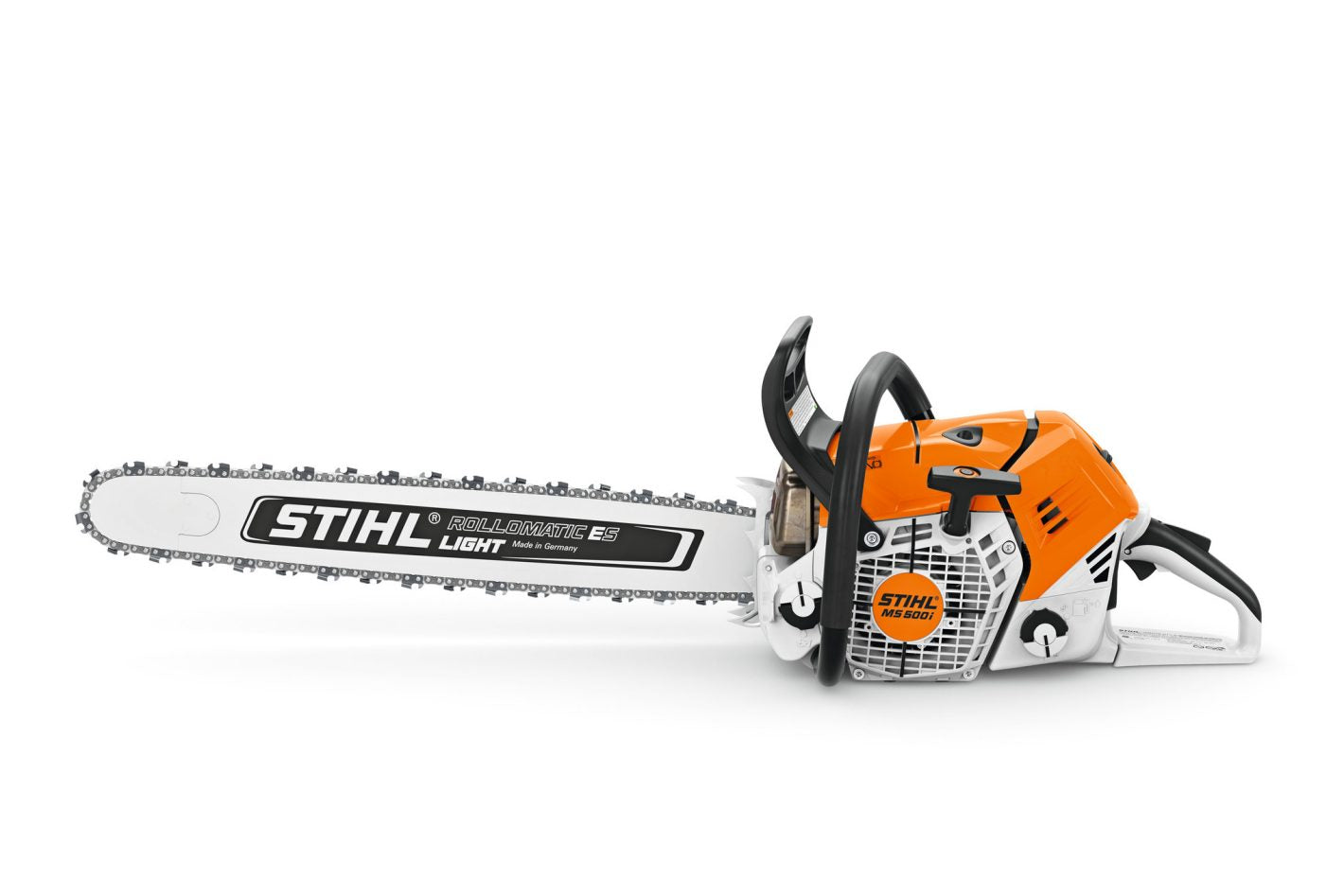

Stihl MS 500i 20" Petrol Chainsaw
Stihl MS 500i 20" Petrol Chainsaw
Couldn't load pickup availability

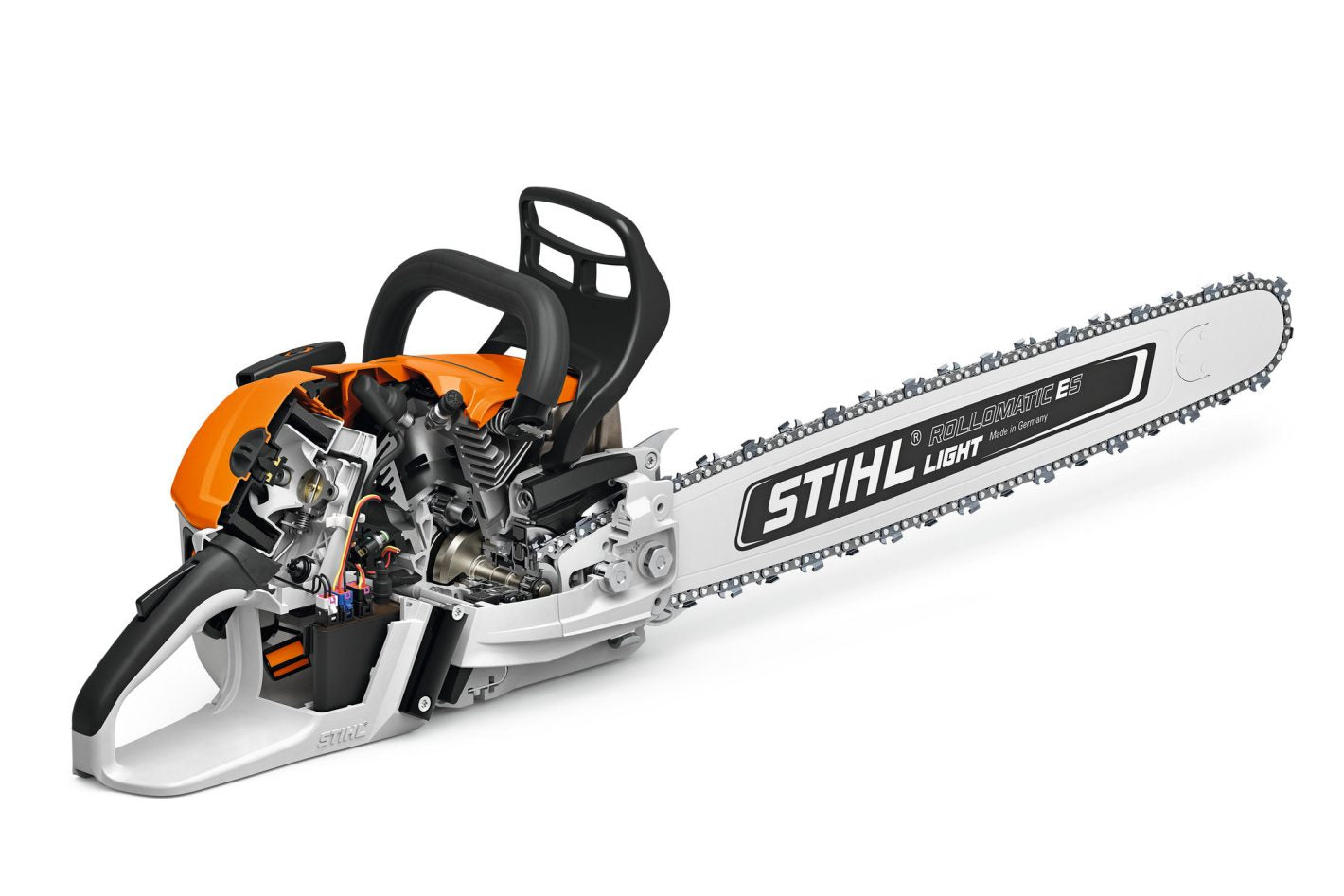

MS 500i Petrol Chainsaw: Powerful 5.0 kW chainsaw with electronically controlled fuel injection
The innovative MS 500i chainsaw from STIHL is the world’s first chainsaw with electronically controlled fuel injection. Its agile, performance-optimised engine accelerates very quickly. Thanks to its extremely successful lightweight design, this tool achieves an impressively low power-to-weight ratio of 1.24 kg/kW. This high-torque machine is a powerful solution for use in professionally harvesting large timber.
The MS 500i features a simple start-up sequence as well as very good starting behaviour under all usage conditions. Sensory fuel metering guarantees that the mixture is directly adapted to the oxygen content of the air. Like the MS 462, this saw can be very easily pivoted and – thanks to its new bumper spikes and sprocket cover – can be guided close to tree trunks.
Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.
Technical details
| Displacement | 79.2 cm³ |
| Power | 5 kW |
| Engine power | 6.80 HP |
| CO2 | 706 g/kWh |
| Device weight without refuelling | 6.3 kg 1) |
| Device weight without refuelling | 7.57 / 7.88 kg 2) |
| Power-to-weight ratio | 1.24 kg/kW |
| Bar length | 50 / 63 cm 3) |
| Bar length | 20 / 25 in 3) |
| Saw chain pitch | 3/8" |
| Device length with bumper spike | 468 mm 1) |
| Sound pressure level | 106 dB(A) 4) |
| Sound power level | 117 dB(A) 4) |
| Vibration level, left | 4.2 m/s² 5) |
| Vibration level, right | 4 m/s² 5) |
