STIHL

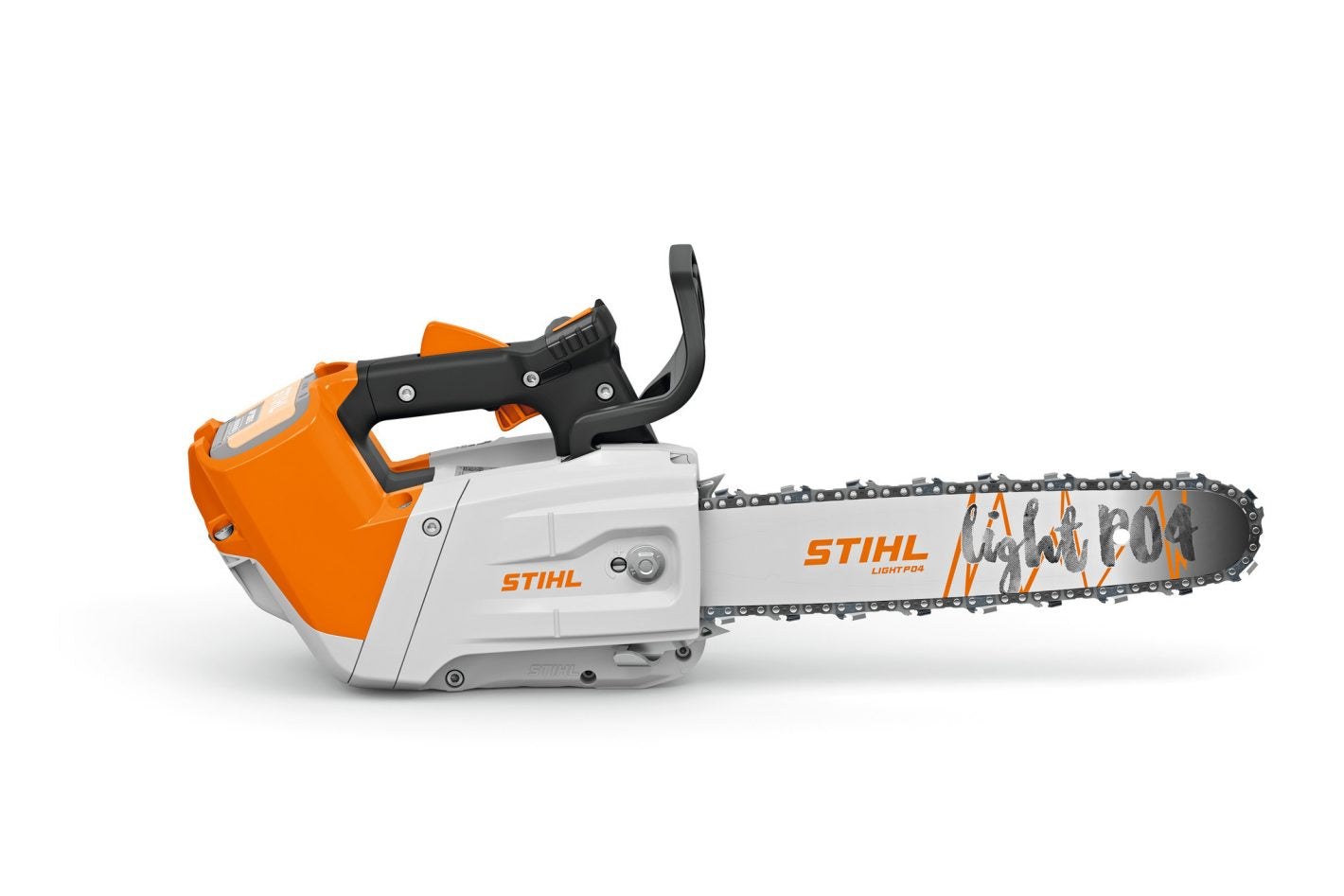

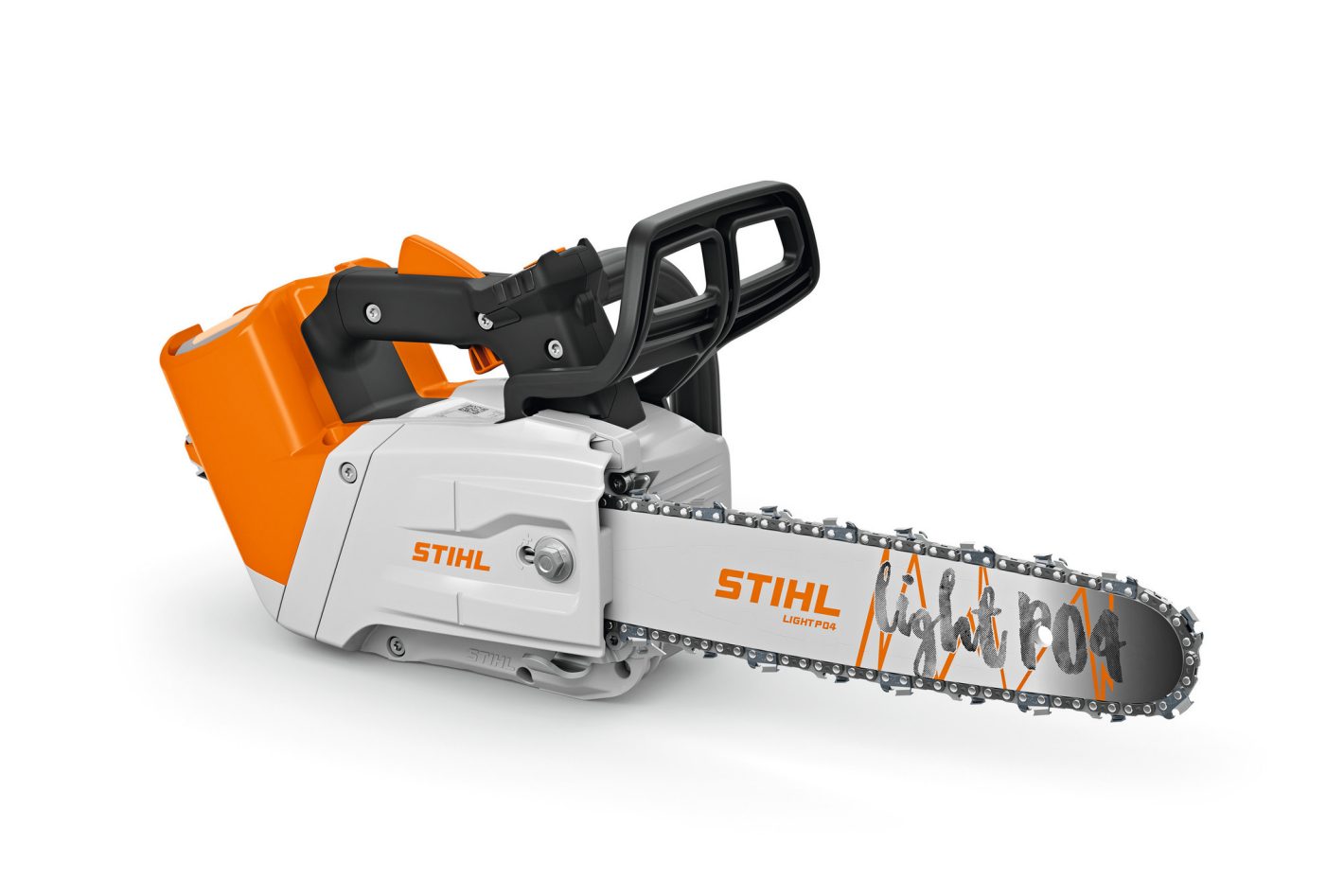

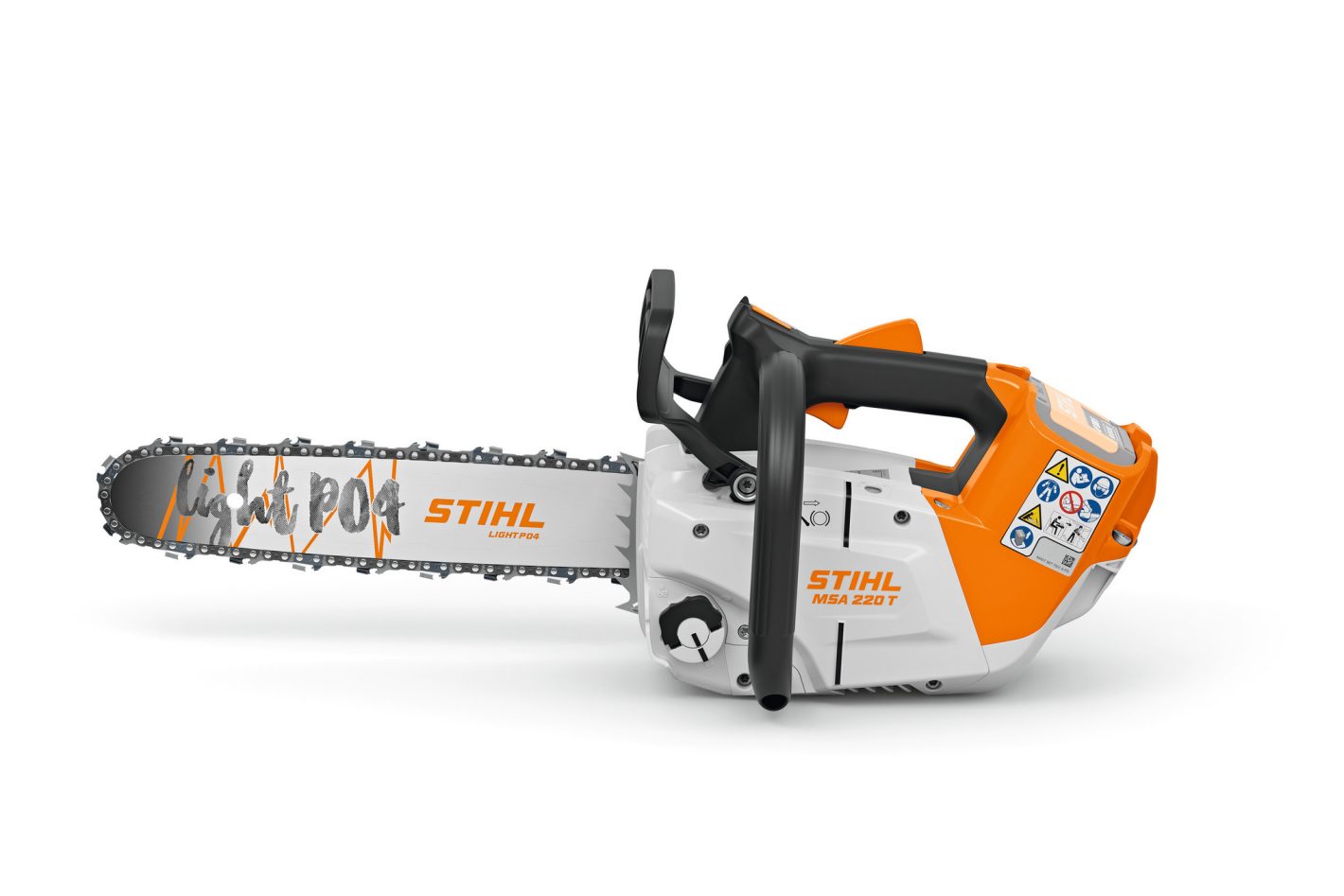

Stihl MSA 220 T 12" Cordless Chainsaw
Stihl MSA 220 T 12" Cordless Chainsaw
Couldn't load pickup availability
SKU:70092000098

MSA 220 T Cordless Chainsaw tool only: Top-handle cordless chainsaw with high-cutting performance for professional use
Please note that this model is only available as a tool only without battery and charger. If you do not already have a battery or charger, please make sure that you add these to your basket.
The MSA 220 T is STIHL’s most powerful cordless top-handle chainsaw. This professional arborist saw is ideal for removing pieces of trunk, crown correction, or removing dead wood and has exceptional cutting performance - the highest of all STIHL top-handle chainsaws.

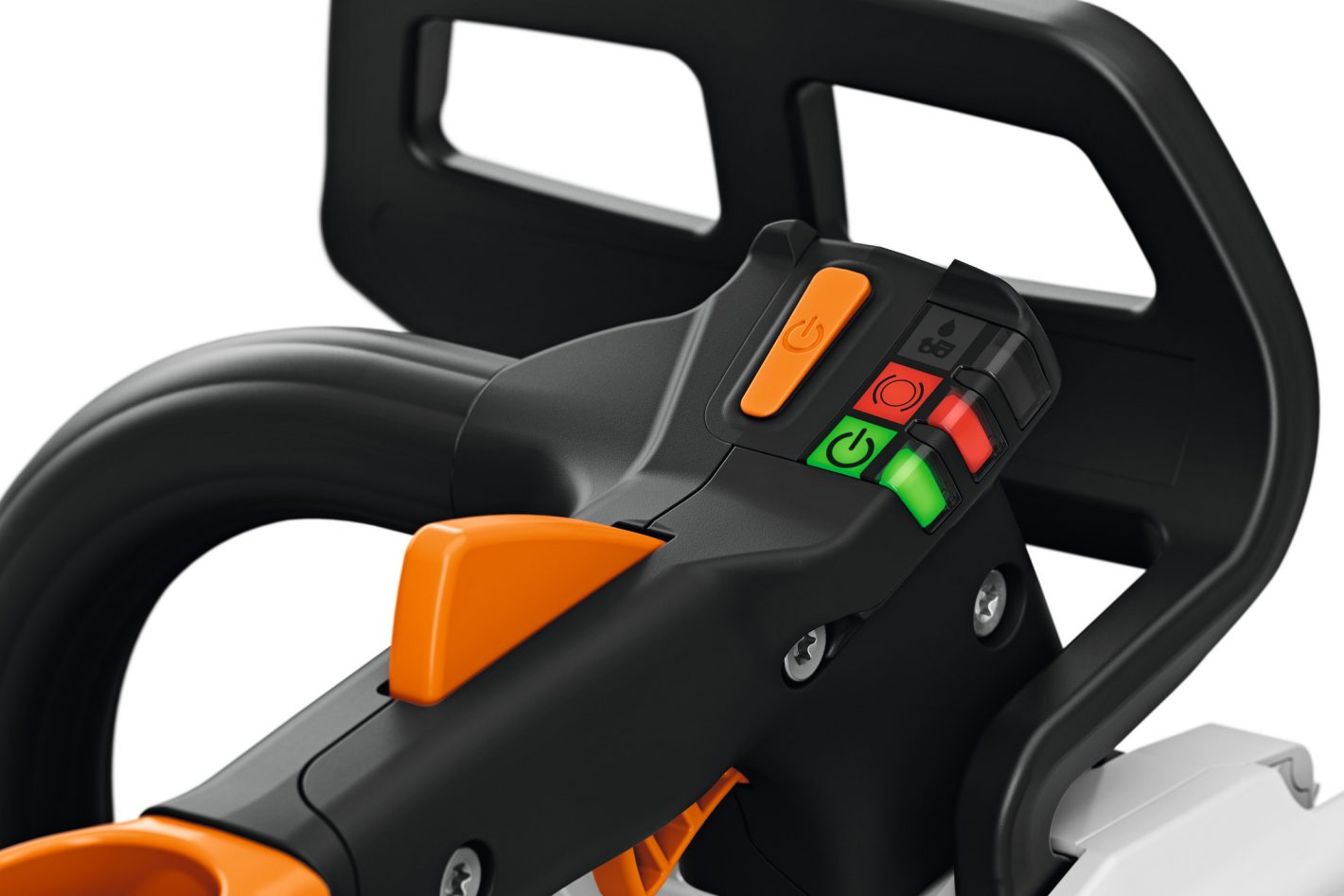

It has an electronic trigger system with an unlock button for simple saw activation, which leads to easy operation and the LED display on the top handle also shows information on the operating status of the chainsaw, as well as the chain brake position. The MSA 220 T has excellent power-to-weight ratio, making it comfortable to use over long periods of time. It is compact and perfectly balanced in its design – when used with the AP 300 S battery, it counterbalances the guide bar for effortless control and reduced wrist strain.
With an easy-to-clean air filter for long service life and optimum engine cooling, excellent cutting performance, side-mounted chain tensioning, tool-free oil tank cap, captive nut on the sprocket cover. Fitted as standard with the 1.3mm 3/8” P PS3 saw chain and Light P04 guide bar for increased performance.
Like most AP System tools, the MSA 220 T is IPX4 rated meaning it can be used in all types of weather conditions. With a fully charged AP 300 S battery, the MSA 220 T has a working time of up to 29 minutes. The AP 300 S battery provides the best balance to weight ratio for the MSA 220 T. For a longer working time of 34 minutes, you can use the AP 500 S battery - although this will affect the balance.
Must be used with AP 300 S or AP 500 S battery for full performance.
NOTE: For purchase by certified arborists only.
Technical details
| Rated voltage | 36 V |
| Power | 1.70 kW 1) |
| Battery system | AP |
| Recommended battery | AP 300 S |
| Device weight without battery | 2.7 kg 2) |
| System weight without battery | 3.28 / 3.38 kg 3) |
| Bar length | 30 / 35 cm 4) |
| Bar length | 12 / 14 in 4) |
| Groove width | 1.30 mm |
| Groove width | 50 in |
| Saw chain pitch | 3/8"P |
| IPX Rating | IPX4 |
| Max. battery working time AP 200 | 16 min 5) |
| Max. battery working time AP 200 S | 16 min 5) |
| Max. battery working time AP 300 | 25 min 5) |
| Max. battery working time AP 300 S | 29 min 5) |
| Max. battery working time AP 500 S | 34 min 5) |
| Device length with bumper spike | 315 mm 2) |
| Sound pressure level | 94 dB(A) 6) |
| Sound power level | 104 dB(A) 6) |
| Vibration level, left | 3 m/s² 7) |
| Vibration level, right | 3.4 m/s² 7) |
